Model Details

Introducing the next generation Tipper.

While the Tipper names have changed (TT85, TT105 and TT126 have become TT2515, TT3017 and TT3621), the trailers are their metric equivalent and offer the same volumetric capacity.

TT2515 (8’ x 5’), the smallest of the range, has a maximum gross weight of 2700kg with the option of a manual or electric hydraulic pump (and self-contained 12v battery). This trailer comes with a strengthened aluminium floor as standard.

Larger models TT3017 (10’ x 5’6") and TT3621 (12’ x 6’6") have electrically operated tipper mechanisms with a self-contained 12v battery as standard.


Key Features

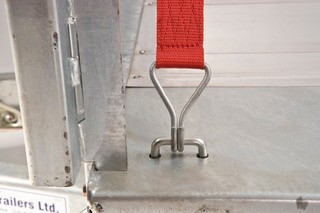

The tipper range is fitted with a planked aluminium floor on all models. Lashing points, winches and mesh side extensions are available as accessories.

Dropsides, Headboard & Tailboard

Dropsides, Headboard & Tailboard

Lockable Storage Box

Lockable Storage Box

Aluminium Floor

Aluminium Floor

Spare Wheel & Carrier

Spare Wheel & Carrier

Heavy Duty Jockey Wheel

Heavy Duty Jockey Wheel

Security Marking & Registration with TER

Security Marking & Registration with TER

Double Hinged Swing Tailboard

Double Hinged Swing Tailboard


Specifications

Model Tyres Gross Weight Unladen Weight Internal Length Internal Width Overall Length Overall Width
TT2515 (Manual) 165R13C 2700kg 700kg 2.46m/8' 1.49m/4'8" 3.81m/12'3" 1.59m/5'5"
TT2515 (Manual) 155/70R12C 2700kg 700kg 2.46m/8' 1.49m/4'8" 3.81m/12'3" 1.59m/5'5"
TT2515 (Electric) 165R13C 2700kg 730kg 2.46m/8' 1.49m/4'8" 3.81m/12'3" 1.59m/5'5"
TT2515 (Electric) 155/70R12C 2700kg 730kg 2.46m/8' 1.49m/4'8" 3.81m/12'3" 1.59m/5'5"
TT3017 (Electric) 195/60R12C 3500kg 870kg 3.01m/9'9" 1.62m/5'6" 4.37m/14'1" 1.72m/5'8"
TT3017 (Electric) 185/70R13C 3500kg 880kg 3.01m/9'9" 1.62m/5'6" 4.37m/14'1" 1.72m/5'8"
TT3621 (Electric) 195/60R12C 3500kg 990kg 3.62m/11'9" 1.95m/6'5" 4.96m/16'7" 2.06m/6'8"
TT3621 (Electric) 185/70R13C 3500kg 1000kg 3.62m/11'9" 1.95m/6'5" 4.96m/16'7" 2.06m/6'8"
