HBX Range

Model Details
Introducing the beautifully engineered HBX range. A stunning design which delivers the highest levels of comfort and safety for your horse. Available in the familiar 403, 506 and 511 size format the design comes with a streamlined aluminium body and a host of intelligent new features. These include the ability to open the rear of the horsefloats as both a ramp and a side-hinged door, and the option to open the front windows fully, or just a little. The sides, floor and ramps of the HBX range are manufactured entirely from aluminium planking. This lightweight structure provides clean modern lines, making the horsefloats easy to tow without compromising on strength. The sides and ramps are all anodised to give a smooth and sophisticated finish which is easy to maintain. The HBX range features three models - one suitable for single horse transport and two different sized double horsefloatses. The HBX-403 is a single horsefloats suitable for the transport of a horse of up to 16.2hh. As a single horsefloats the HBX-403 offers more stall width than either of the two double horsefloatses. The HBX506/511 double horsefloatses are ideal for transporting two horses up to 16.2hh/17.2hh respectively. They are available with the option of either a front ramp or a built-in tack locker. Options include padded breast and breeching bars, side padding and the choice of fitting a side awning to your trailer via the awning rail (fitted as standard). For full details please download our brochure.
singleimg
Credit One
Key Features

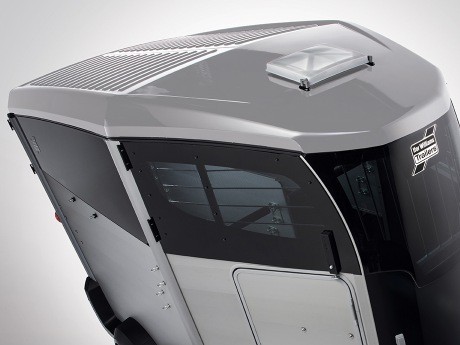

One Piece Roof

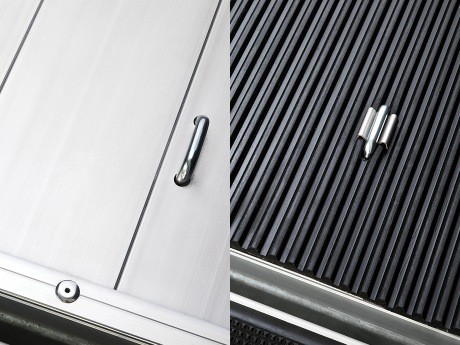

Alloy Flooring and Rubber Matting
Breast Bar Release System
Internal Door Lock
Centre Partition and Interior Kickboard
Combined Mud Guard and Rear Light Cluster
Combined Ramp and Door
Front Panel and Window

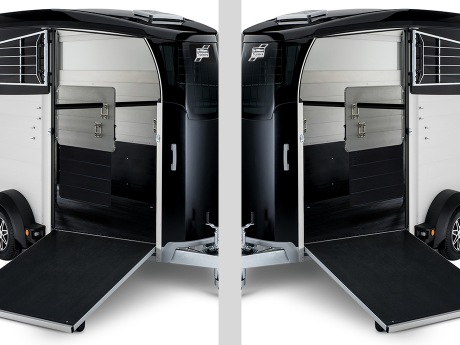

Front Ramp Options
Front Top Opening Doors
Head Partition
One Piece Roof
Parabolic Leaf Spring Suspension
Side Mounted Spare Wheel
Rotating Ramp Catches
Interior LED Light
Internal Door Lock
Specifications
ModelTyresGross WeightUnladen WeightInternal LengthInternal WidthOverall LengthOverall Width
HBX403165R13C1600kg720kg3.19m3.19m4.30m1.77m
HBX506HBX5062600kg865kg3.26m1.67m4.30m2.14m
HBX511165R13C2700kg950kg3.63m1.79m4.67m2.27m
