HB Range
Horsebox

HB Range

Model Details

The HB range, a traditional design which delivers the highest levels of comfort and safety for your horse.

The horsebox range is built with an aluminium frame of six vertical pillars in each corner, with additional strength provided by horizontal extrusions along the length of the trailer. The concealed frame provides a large side panel area resulting in a stylish looking trailer which is more automotive than agricultural in appearance.

The trailer range features a brushed aluminium frame, lowered aluminium skirt running around the front of the trailer chassis, with sides and ramps made using composite aluminium/plywood side panels. All models feature a pair of side windows and have a large inspection window which allows more daylight into the trailer. Centre partitions (double horsebox only) and breast and breeching bars are fitted as standard.

Available in the HB403, HB506 and HB511 sizes the trailer can be ordered with the choice of right or left hand front ramp, or no front ramp.

The HB403 is a single horsebox suitable for the transport of a horse of up to 16.2hh and offers more stall width than either of the two double horseboxes.

The HB506 and HB511511 double horseboxes are ideal for transporting two horses up to 16.2hh/17.2hh respectively.

For full details please download our brochure.


Key Features

Aluminium Floor & Rubber Matting

Aluminium Floor & Rubber Matting

Tough, Nylon Moulded Hinges & Handles

Tough, Nylon Moulded Hinges & Handles

Security Marking & Registration with TER

Security Marking & Registration with TER

Breast Bar Release System

Breast Bar Release System

Ventilation

Ventilation

Quick Release Door Catches

Quick Release Door Catches

Clip-On Number Plate Holder

Clip-On Number Plate Holder

Re-styled Mudguards

Re-styled Mudguards

Rear Positioned Spare Wheel

Rear Positioned Spare Wheel

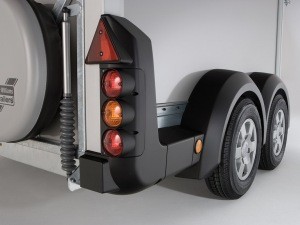

Gas Strut Assisted Ramps

Gas Strut Assisted Ramps

Large Front Window

Large Front Window

Lockable Grooms Door

Lockable Grooms Door

Centre Partition

Centre Partition

Side Marker Lights

Side Marker Lights

Interior Light

Interior Light

Side Windows

Side Windows

Left or Right Hand Ramp

Left or Right Hand Ramp


Specifications

Model dimensions can be viewed in the table below. For more detailed dimensions, please download the product brochure.

Model Tyres Gross Weight Unladen Weight Internal Length Internal Width Overall Length Overall Width
HB403 155R13C/165R13C 1600kg 767kg 3.08m 1.30m 4.36m 1.76m
HB506 165R13C 2600kg 920kg 3.16m 1.67m 4.30m 2.13m
HB511 165R13C 2700kg 1000kg 3.52m 1.79m 4.65m 2.26m
